Pastured Pig Hut from re-purposed materials

Tool Concept
Stage:
DIY


Primary problem statement:
I am a Pastured Pig Farmer and I want a tool to Give my pigs highly mobile shelter because We want the pigs to be happy and healthy while making moving from pasture to pasture fast and efficient.
Read more about this problem statement



License:
Description:
I wanted an easily moved mobile hut for my pastured Piggies. It needed to shed water, block wind, take the abuse but be light enough to handle. I came up with this repurpose idea. In our area of the country there's lots of decommissioned feed bins that end up being scrapped....I noticed this and felt I could repurpose a couple and get years of use from them while serving my Piggies well, and other critters possibly too.
Documentation
Documentation Wiki:

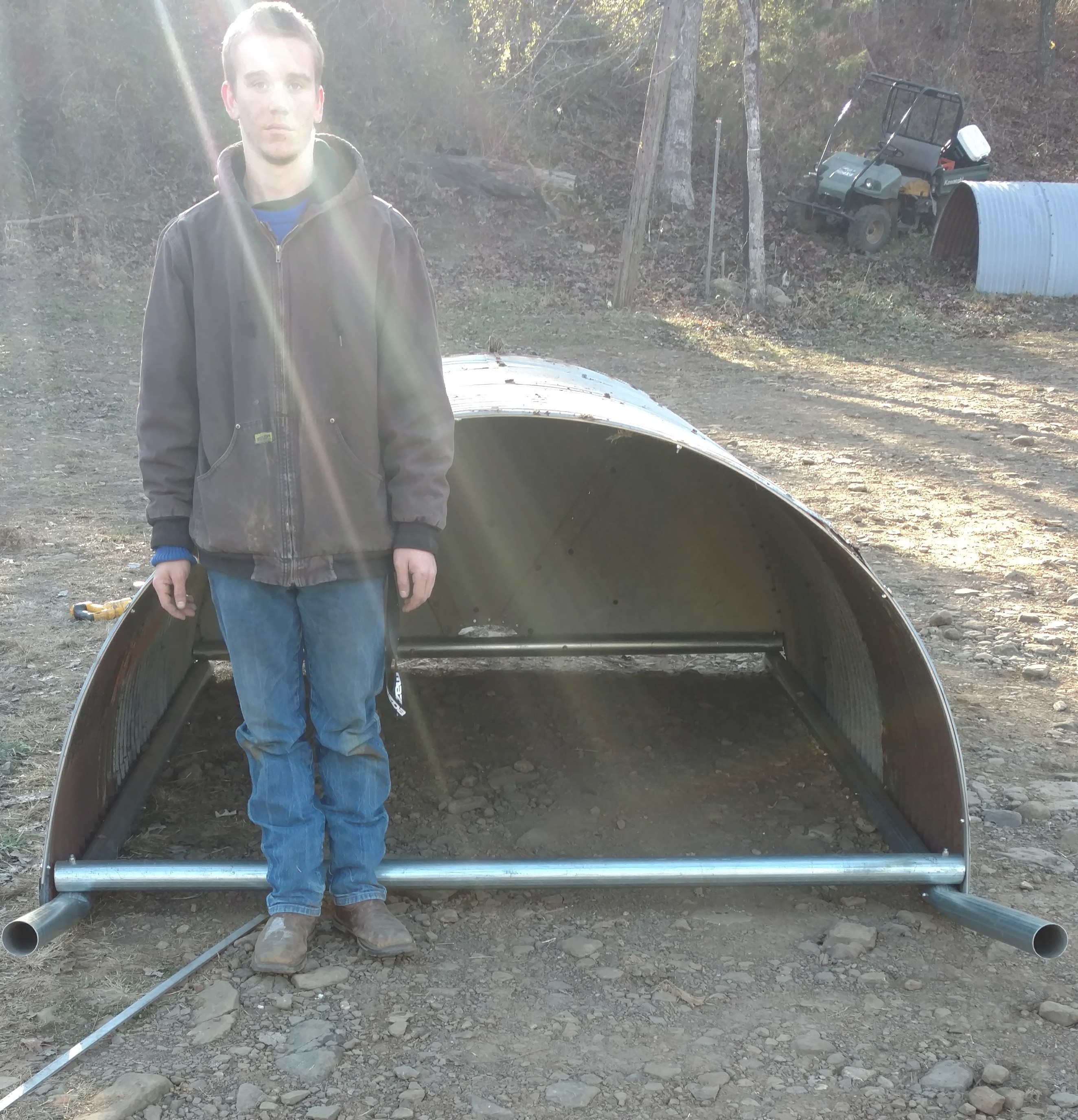

If you can envision the cylindrical body of a grain bin, then cut it in half, and then into quarters. These quarter cuts are the basis for my Hut.
It needed stiffening to be highly mobile, so I used repurposed Conduit to bolt sled runners to the side. I added Conduit across the runners to increase stability and to keep it from spreading..
We used a piece of 1" x 1/8" flat stock bolted to the front edge for extra support but it doesn't need it.
We took off all the supporting legs ladder ECT. I used a 4" grinder and zip blade to cut it apart..... Remember to use a face shield and leather gloves.
Currently because we're in the middle of winter I'll put a couple tractor scoops of sawdust down under it and then a couple of layers off a round hay bale inside.... face it south and The Piggies are warm and comfy....And best off all I have less than 20$ in two guys .... Not counting my labor of course....
One possible improvement I think I'll try is to add a rough cut oak board floor so they can completely get off the ground... This improvement would be great for smaller pigs allowing us to throw hay on a raised floor where they're high and dry.
